Developer Guide of VS Code Extension

Configuring webOS TV extension

This section guides you on installing the webOS TV extension for Visual Studio (VS) Code. To learn how to use the critical functions of the extension, see Using webOS TV Extension.

Setting webOS TV extension

Set the following items from File > Preferences > Settings (Ctrl+,) on VS Code. You can see the following items on the Extensions > webOS TV category.

webostv.chromeExecutable

Set the location of the Chrome browser executable to debug apps on webOS TV with Web Inspector, as the following example.

"C:\webOS_TV_SDKIDE\chromium\chrome.exe"

webostv.defaultDevice

Set the default device name to skip selecting a device whenever you run a command, as the following example. This setting is optional.

"emulator"

webostv.hostIP

Set the host IP address to skip entering a host IP address whenever you run the "webOS TV: Run without Installation" command, as the following example. This setting is optional.

"192.168.0.1"

Connecting target device

To run or debug apps on the webOS TV device excepting the emulator, you should connect the device to your PC.

Step 1. Installing Developer Mode app

First, install the Developer Mode app on your TV and turn on Developer Mode. For more information about installing the Developer Mode app and preparing the login account, see Developer Mode App and Preparing LG Account.

  1. Install the Developer Mode app on your TV from LG Content Store.
  2. Launch the Developer Mode app from the webOS TV Launcher and log in to the Developer Mode with your LG account.
  3. Click the Dev Mode Status button to turn on Developer Mode.

Step 2. Registering target device

Register your target device information on VS Code.

  1. Select webOS TV: Set Up Device from the Command Palette (Ctrl+Shift+P) and select Add Device. You can also click the Add Device icon (+) on the webOS TV Devices in the Activity Bar.
  2. Enter your device name.
  3. Enter your device's IP address.
  4. Enter your device's port number for the connection. In most situations, press Enter to set it as the default value (22).
  5. Enter the device's username for connection. In most situations, press Enter to set it as the default value (root).

Step 3. Setting SSH key

  1. After turning on Developer Mode on your device, launch the Developer Mode app.
  2. Click the Key Server button in the Developer Mode app.
  3. Select webOS TV: Set Up SSH Key from the Command Palette (Ctrl+Shift+P) on VS Code and select your device. You can also right-click on the device and select Set Up SSH Key on the webOS TV Devices in the Activity Bar.
  4. Enter the passphrase (case sensitive) as displayed on the Developer Mode app.

Interfaces and commands

Visual Studio (VS) Code, which you probably are already familiar with, provides most features of the webOS TV CLI. With the commands and menus provided in the webOS TV extension, you can have the same result as the webOS TV CLI. If you want to check available features in the extension, see Supported Features of the webOS TV extension.

webOS TV commands on Command Palette

Open the Command Palette (Ctrl+Shift+P). To see all available webOS TV commands, open the Command Palette and type 'webOS TV.'

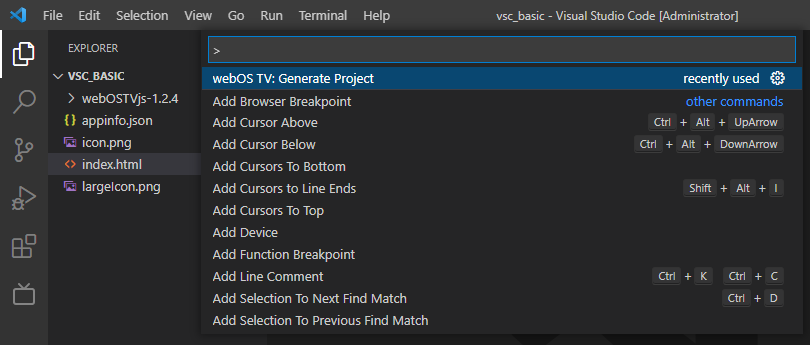

The command palette of the Visual Studio Code

Developing apps

To develop apps, use the following commands.

  • webOS TV: Generate Project - Create a web app from templates.
  • webOS TV: Preview Application - Runs a web server for testing app files in local PC.
  • webOS TV: Package Application - Package your app files into the package file (.ipk) stored in a specified directory.

Connecting devices

To connecting the target devices and your PC to test your app excepting the emulator, use the following commands.

  • webOS TV: Set Up Device - Add, modify, or remove devices from the device list.
  • webOS TV: Set Up SSH Key - Get a private key from webOS TV device. After getting the private key, you can install and launch apps or run other commands on webOS TV.

Testing apps on devices

To test apps on the target devices, use the following commands.

  • webOS TV: Install Application - Install your app on the target device with the selected app package file (.IPK).
  • webOS TV: Launch Application - Run your app installed on the device.
  • webOS TV: Inspect Application - Run Web Inspector and open the browser. Web Inspector displays the running information about your app.
  • webOS TV: Inspect JS Service - Run Node Inspector in the target device and create a launch configuration file to run Node Inspector Client in VS Code. You should package the JS service with your app by CLI and install it on the target device.
  • webOS TV: Run without Installation - Run your web app on the device without packaging and installing the app whenever you change the code.

Batch commands

To execute multiple commands at a time, use the following commands.

  • webOS TV: Run Application - Package, install, and launch your app sequentially.
  • webOS TV: Debug Application - Package, install, and inspect your app sequentially.

webOS TV features on user interface

You can use various features of the webOS TV extension from the inline and context menus on VS Code.

Explorer

In The Explorer, you can browse, open, and manage all of the files and folders in your webOS TV project.

Explorer Context Menu

When you right-click the IPK file of your app in the Explorer, you can install, run, and debug your app.

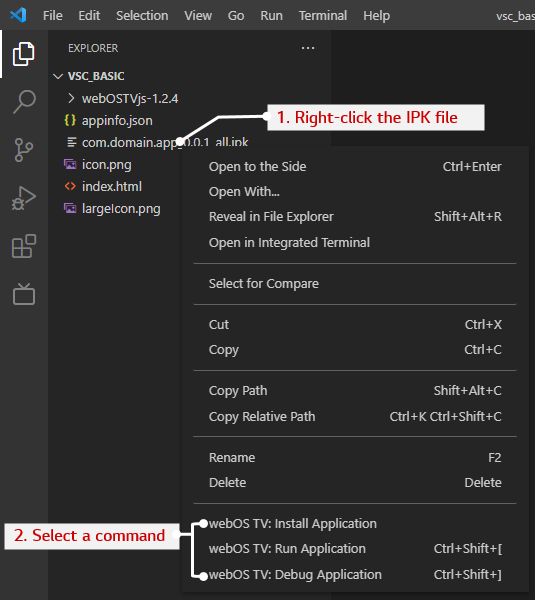

The Explorer context menu by clicking the IPK file of the Visual Studio Code

  • webOS TV: Install Application - Install the selected app.
  • webOS TV: Run Application - Install and launch the selected app.
  • webOS TV: Debug Application - Install and inspect the selected app on the target device.

When you right-click the directory of your app files in the Explorer, you can also package, preview, and run without installing your app.

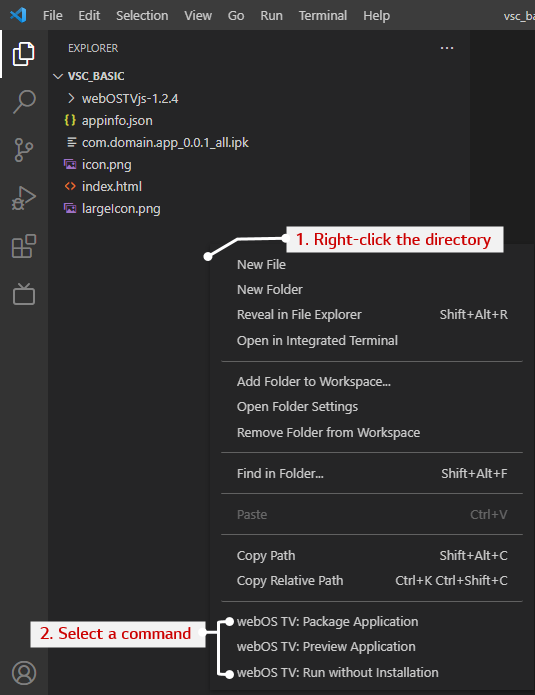

The Explorer context menu by clicking the directory of the Visual Studio Code

  • webOS TV: Package Application - Package the selected app directory into the package file (.ipk) stored in a specified directory.
  • webOS TV: Preview Application - Run a web server for testing the selected app directory.
  • webOS TV: Run without Installation - Run the selected app directory on the device without packaging and installing the app whenever you change the code.

Editor

You can run some commands directly by right-clicking in the editor without launching the Command Palette.

Editor Context Menu

The editor context menu of the Visual Studio Code

  • webOS TV: Generate Project
  • webOS TV: Package Application
  • webOS TV: Run Application
  • webOS TV: Debug Application

Activity Bar

You can run some commands about target devices and your apps from webOS TV devices in the Activity Bar. To activate the extension, click the Refresh icon at first.

Device Inline Menu

The device inline menu of the Visual Studio Code

  • Refresh - Refresh the list of devices.
  • Add Device - Add a device to the list.
  • Modify Device - Modify the selected device.
  • Remove Device - Remove the selected device.
Device Context Menu

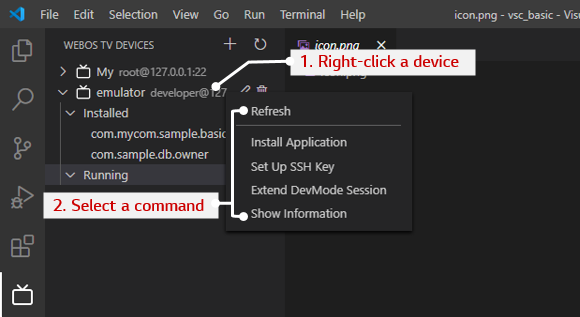

The device context menu of the Visual Studio Code

  • Refresh - Refresh the installed and running app lists of the selected device.
  • Install Application - Install your app to the selected device.
  • Set Up SSH Key - Get a privacy key from the selected device.
  • Extend DevMode Session - Extends the Developer Mode session time of the selected device. Note that this command only works when the following conditions are satisfied.
    • The Developer Mode is on.
    • The session time remains longer than 0 minutes.
  • Show Information - Retrieves the following system information of the selected device. Note that if some system information cannot be retrieved depending on TV models, only the retrieved information is displayed.
    • Model Name
    • SDK Version
    • Firmware Version
    • Board Type
    • OTA (Over The Air) ID
Application Context Menu

The application context menu of the Visual Studio Code

Note that you can refresh the installed and running app lists only when the device is connected.

  • Run - Run the selected app to the device. It is the same as webOS TV: Launch Application command in the Command Palette.
  • Debug - Run Web Inspector and open the browser. Web Inspector displays the running information about your app. It is the same as webOS TV: Inspect Application command in the Command Palette.
  • Uninstall - Uninstall the selected app from the device. This command works only for installed apps.
  • Close - Close the selected app on the devices. This command works only for running apps.

Using webOS TV extension

This section guides you on developing apps using the webOS TV extension for Visual Studio (VS) Code. After completing configuring webOS TV extension, read this section to develop webOS TV apps in VS Code.

Creating a web app

To create a web app in VS Code, generate a project first, then write your code. After writing your code, you can package your project into an app.

Generating a project with a template

Start by creating a web app using one of the available templates. These templates provide a starting point for developing web apps.

  1. Select webOS TV: Generate Project from the Command Palette (Ctrl+Shift+P).
  2. Select Basic Web App.
  3. Select a location for your app with the file system button at the top-right corner of the Command Palette. You can press Enter to create a basic web app in the default path (your current workspace directory).
  4. Enter the project name of your app.
  5. Enter your app properties - app ID, app version, and app title. You can press Enter to set it as default values.
  6. Select whether to open the created app directory as the workspace.

The following example image shows the my_web_app project under the MY_PROJECT folder with the basic web app template. It did not open the my_web_app project as the workspace by selecting No in the last step.

Screenshot shown the generated project with a template on VS Code

Packaging the project into an App

Follow the steps to package your web app created in the previous section into an IPK app file.

  1. Select webOS TV: Package Application from the Command Palette (Ctrl+Shift+P).
  2. Enter the directory of your web app. You can press Enter to set it as the default path (your current workspace directory).
    To package a web app with JS services, click Browser File System at the top-right corner and select the directories of the web app and JS services to package together using ctrl key.
  3. Enter the directory path to locate the packaged app file. You can press Enter to set it as the default path (your current workspace directory).
  4. Select whether to minify your app. To debug with the web inspector, select No.

If your app is packaged successfully, the IPK file is created as below.

Screenshot shown the packaged app in the Explorer

You can also package an app with the Explorer context menu.

Deploying web app

Before you deploy your web app on the target device, make sure to connect the target device to your PC. For more information about the connection, see the Connecting Target Device section.

Installing the app

Install the packaged app on the target device.

  1. Right-click the IPK file from the Explorer.
  2. Select the device to install the app.

If your app is installed on the target device successfully, you can see the app on the webOS TV Devices view below.

Screenshot shown the installed app on the webOS TV device view

You can also install your app with the webOS TV: Install Application command on the Command Palette or the Device context menu.

Launching the app

Launch the app installed on the target device.

  1. Right-click your app ID to launch from the installed apps list.
  2. Select Run.

Screenshot shown the 'Run' menu to launch the app

You can also launch your app with the webOS TV: Launch Application command on the Command Palette.

Launching the app with parameters

Launch the app installed on the target device with parameters.

  1. Select webOS TV: Launch Application with Parameters from the Command Palette (Ctrl+Shift+P).

  2. Select the device to launch the app.

  3. Select the app ID to launch.

  4. Enter launch parameters.
    If you do not enter the parameters and press Enter, the content in the .launchparams.json file in the root of the workspace will be entered by default.
    If you enter the parameters, they will be save in the .launchparams.json file.

    The following is an example of the parameter input window when the content in the .launchparams.json file is {"key":"test 123"}. If you do not enter the parameters and presses Enter, {"key":"test 123"} will be entered by default.
    webOS TV VSCE 1.2.0 Launch with parameters_parameter input example

Debugging web app

Before debugging your app, make sure to set the value of webostv.choromExecutable property in Settings. For more information about the setting, see the Setting webOS TV Extension section.

Inspecting the app

Run Web Inspector and open the browser. Web Inspector displays the running information about your app.

  1. Right-click the app ID to debug from the installed or running apps list.
  2. Select Debug.
  3. Chrome browser for Web Inspector is launched with the debugging URL.

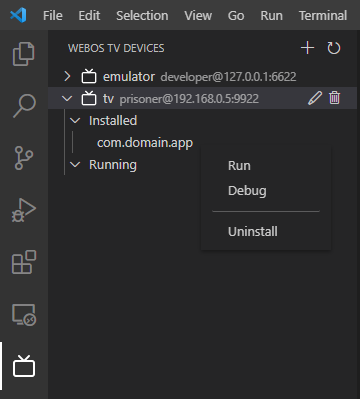

Screenshot shown the 'Debug' menu to inspect the app

You can also launch your app with the webOS TV: Inspect Application command on the Command Palette.

Inspecting the JS service

Run Node Inspector in the device and create a launch configuration file to run Node Inspector Client in the VS Code. The JS service to inspect should be packaged and installed with the app in the device.

  1. Select webOS TV: Inspect JS Service from the Command Palette (Ctrl+Shift+P).
  2. Select the device.
  3. Enter the service ID to inspect.
  4. For webOS TV 5.0 or higher, a launch configuration file(.vscode/launch.json) is created in the workspace. If there is no opened workspace, select the location of the launch configuration file with the file system button at the top-right corner. To start debugging, press F5. For webOS TV 4.5 or lower, Chrome browser for Node Inspector is launched with the debugging URL. The following is an example of debugging com.domain.app.service on webOS TV 22.

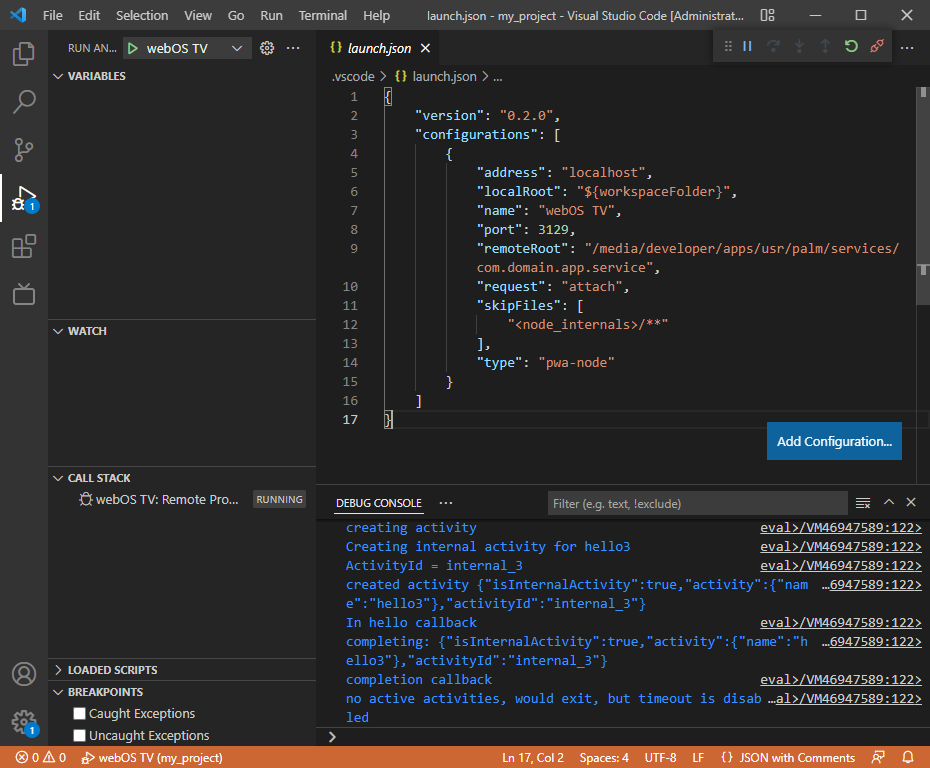

    Screenshot of inspecting a JS service using the 'Inspect JS service' menu

Running the app without installation

You can run your app on the target device without packaging and installing it whenever you change the code.

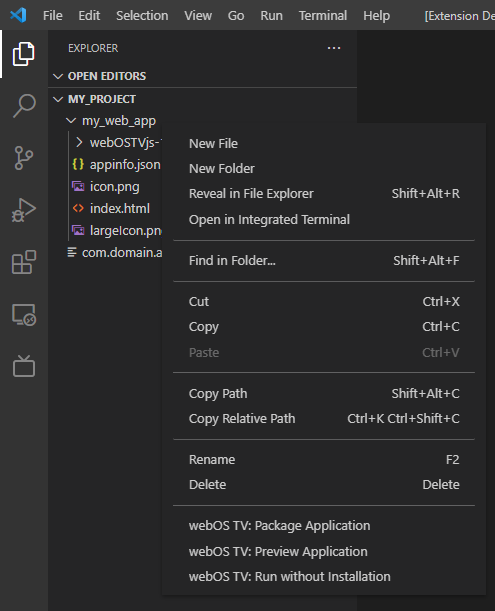

Screenshot shown the 'Run without Installation' menu

  1. Right-click the app directory from the explorer and select webOS TV: Run without Installation.
  2. Select the target device to run the app.
  3. Enter the IP address of the host PC (your local PC).

You can also execute the webOS TV: Run without Installation command on the Command Palette.

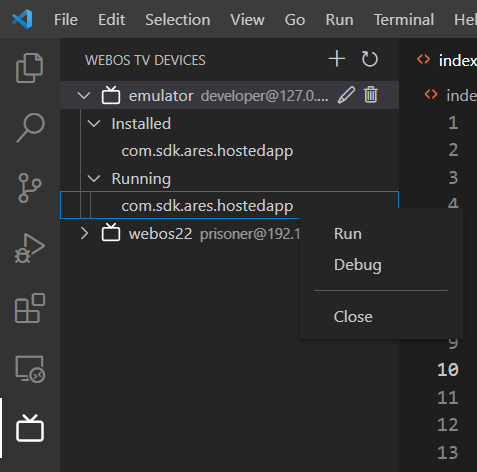

Screenshot showing how to close an hosted app

To close the hosted app on the target device, follow the steps.

  1. Right-click com.sdk.ares.hostedapp from the running apps list.
  2. Select Close.

Running the app on the Simulator

You can run your app on the Simulator without packaging and installing it whenever you change the code.

If you have not installed webOS TV Simulator yet, go to Simulator Installation and install the Simulator first.

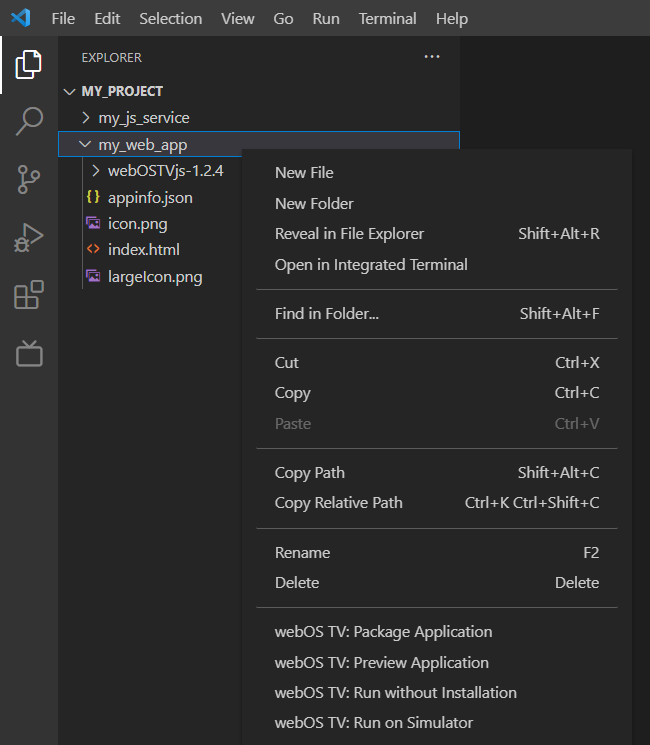

Screenshot showing the 'Run on Simulator' menu

  1. Right-click the app directory from the explorer and select Run on Simulator.
  2. Select the version of webOS TV Simulator to launch.

You can also execute the webOS TV: Run on Simulator command on the Command Palette.

note

You can launch an app with parameters on the Simulator using the webOS TV: Run on Simulator with Parameters command on the Command Palette in the same way explained in Launching the App with Parameters.
